Conveyor Pulley
Leading Manufacturers, Wholesaler, Trader, Exporters and Retailer of Conveyor Drive Pulley, Conveyor Head Pulley, Conveyor Snub Pulley, Conveyor Tail Pulley and wing pulley from Ahmedabad.
| Business Type | Manufacturer, Supplier |
| Application | Belt Coneyer |
| Country of Origin | India |
| Type | Conveyor Pulleys, V Belt Pulley |
| Pulley Style | Standard |
| Color | Black, Grey, Silver |
| Material | Mild Steel |
Preferred Buyer From
| Location | Anywhere in India |
Conveyor Drive Pulley | Drive Drum Pulley for Belt Conveyor
A conveyor drive pulley, also known as a head or drive drum, is a key component of a belt conveyor drive system. The drive pulley is connected to the motor, usually through a gearbox, and provides the necessary torque to move the conveyor belt. We offer conveyor drive pulleys or complete drive system..
APPLICATION
The conveyor drive pulley is typically located at the discharge end of the conveyor system, opposite the tail pulley. The primary function of the drive pulley is to transmit power from the motor to the conveyor belt, causing it to move and transport materials along the conveyor. It can be used in many industries such as:
aggregate & sand production,
mining & mineral processing,
food processing,
warehousing,
manufacturing
logistics applications.
FEATURES
High Power Transmission
The motor, often connected to our drive pulley through a gearbox, provides the necessary power to drive the conveyor belt. The drive pulley transforms this power into rotational motion, moving the belt.
Steel Shell With Materials Lagged
Conveyor drive pulleys are usually constructed from steel. The outer surface of the pulley, where the conveyor belt makes contact, may be lagged with rubber or other materials to provide better traction and reduce wear.
Robust Enough Shaft Design
The design of the shaft on which the drive pulley is mounted is important. It must be robust enough to handle the loads and forces exerted by the conveyor system.
Torque Limiting Devices Available
Some conveyor drive pulleys may include torque limiting devices to protect the system from overloads. These devices can prevent damage to the motor and gearbox by limiting the torque transmitted to the conveyor belt.
Safety Considerations
Safety guarding is essential for drive pulleys to prevent accidental contact with moving parts. Guards should be installed to protect personnel from potential hazards.
Belt Conveyor Drive Pulley
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, JIS, AS/NS, etc.
Working Life More than 30,000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
Length of conveyor drive pulley depends on the width of conveyor Belt. You can get drive pulleys with hot & cold vulcanized rubber lagging, plain or grooved, as required by client.
| Business Type | Manufacturer, Supplier |
| Shape | Round |
| Color | Black, Grey |
| Application | Industrial |
| Country of Origin | India |
| Hardness | 70 HRC |
| Corrosion Resistance | Yes |
Preferred Buyer From
| Location | Anywhere in India |

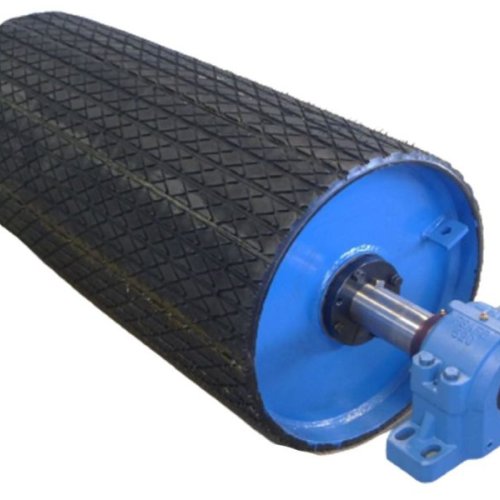

Conveyor Head Pulley
The belt conveyor head pulley is located at the discharge point of conveyor. It drives the conveyor belt. For better traction, the head pulley is usually lagged (with either rubber or ceramic lagging material).
APPLICATION
The head pulley is typically located at the discharge end of the conveyor system, opposite the tail pulley. The primary function of the head pulley is to transmit power from the motor to the conveyor belt, causing it to move and transport materials along the conveyor. It is widely used in:
metallurgy,
mining,
quarrying,
Cement and clinker,
construction waste,
chemical, fertilizer,
aggregate, sand, gravel,
materials, etc.
FEATURES
Heady Pulley Construction
Head pulleys are usually constructed from steel. The outer surface of the pulley, where the conveyor belt makes contact, may be lagged with rubber or other materials to provide better traction and reduce wear.
Various Diameter Selection
The diameter of the head pulley is an important design consideration. Larger diameter head pulleys provide more surface area for the conveyor belt to grip, resulting in better traction and reduced tension requirements.
Robust Shaft Design
The design of the shaft on which the head pulley is mounted is important. It must be robust enough to handle the loads and forces exerted by the conveyor system.
Environment Considerations
The environmental conditions at the location of the head pulley, such as exposure to dust, moisture, or corrosive substances, may influence the choice of materials and coatings for the pulley.
High Quality Bearings
Bearings are mounted on the shaft of the head pulley to facilitate smooth rotation. The type of bearings used depends on factors such as load capacity, speed, and environmental conditions. We offer SKF, FAG, NSK, LYC, HRB, or ZWZ for selection.
Belt Conveyor Head Pulley
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30,000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
Length of conveyor Head pulley depends on the width of conveyor Belt. You can get Head pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.
| Business Type | Manufacturer, Supplier, Retailer |
| Application | Conveyor |
| Pulley Material | Mild Steel |
| Type Of Pulley | Head Pulley |
| Pulley Diameter | 300 Mm |
| Country of Origin | India |
| Length | 600 mm |
| Finishing | Rubber Coated |
Preferred Buyer From
| Location | Anywhere in India |
APPLICATION
Snub pulleys are usually positioned close to the drive pulley at the head of the conveyor system. The main function of a snub pulley is to increase the wrap angle of the conveyor belt around the drive pulley. This increased wrap angle enhances the friction between the belt and the drive pulley, preventing slippage and improving traction. It can be used in industries of mining, quarry, power plant, sand plant, cement, coal, port, steel, etc.
FEATURES
1. Installation Location: Snub pulleys are usually positioned close to the drive pulley at the head of the conveyor system.
2. Working Function: This increased wrap angle enhances the friction between the belt and the drive pulley, preventing slippage and improving traction.
3. Increase Wrap Angle: Snub pulleys are designed to increase wrap angle, which results in a greater surface area of the belt in contact with the drive pulley.
4. Friction and Traction: By increasing the wrap angle, snub pulleys help to maximize the friction between the belt and the drive pulley.
Belt Conveyor SnubPulley
Items Content
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30,000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
Length of conveyor Snubpulley depends on the width of conveyor Belt. You can get Snubpulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Type | Conveyor Pulleys |
| Feature | Corrosion Resistance, Dimensional, Durable, High Quality, High Tensile, Non Breakable, Rust Proof |
| Color | Black, Grey |
| Pulley Diameter | 219-800 |
| Type Of Pulley | Return Pulley |
| Pulley Material | Mild Steel |
Preferred Buyer From
| Location | Anywhere in India |
APPLICATION
The belt conveyor tail pulley can be used as take-up pulley, snub pulley, and bend pulley. The primary function of the tail pulley is to redirect the returning conveyor belt and provide tension. It helps maintain proper belt tracking and ensures that the belt remains under tension to prevent slack. It can be used in industries of mining, quarry, power plant, sand plant, cement, coal, port, steel, etc
FEATURES
Tail Drum Pulleys
You can get belt conveyor traditional tail drum pulleys with high abrasion resistant rubber or ceramics covered. The diameter of tail pulley is smaller than driving pulley. It is installed at the tail of belt conveyor to change the direction of conveyor belt.
Winged Tail Pulleys
You can get heavy duty wing pulley, spiral wing pulleys, chevron wing pulleys, herringbone wing pulleys. Wing type tail pulleys are often installed as a method to reduce the risk of belt damage from the entrapment of lumps of material between the belt and the pulley.
Belt Conveyor Tail Pulley (Return Pulley)
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30,000 hours.
Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
The selection and design of the tail pulley should be tailored to the specific requirements of the conveyor system, including factors such as load capacity, belt tension, and environmental conditions. Length of conveyor Tail pulley depends on the width of conveyor Belt. You can get Tail pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.
..
| Business Type | Manufacturer, Supplier |
| Usage | Industrial |
| Type | Automotive Pulleys |
| Number Of Grooves | Multi-Groove |
| Standard Lift | 12 M |
| Country of Origin | India |
| Capacity | 1 Ton |
| Material | Mild Steel |
| Diameter | 68 mm |
Preferred Buyer From
| Location | Anywhere in India |
APPLICATION

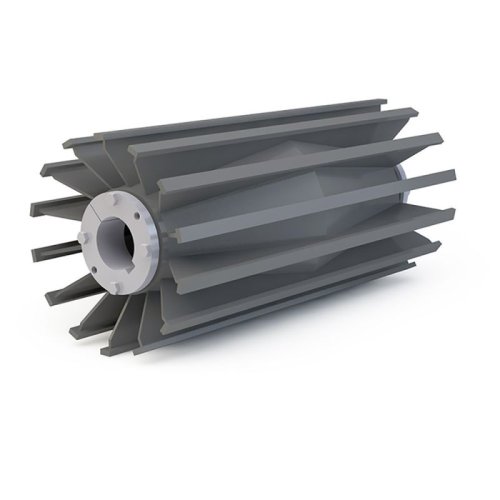

The belt conveyor wing pulley is known as self-cleaning pulleys. These wings serve several purposes, including improving belt tracking, reducing material spillage, and enhancing overall conveyor system efficiency. It has the ability of belt tracking and self-cleaning, and it can reduce material spillage.
Like other types of conveyor pulleys, wing pulleys may be equipped with lagging material on the surface to improve traction between the pulley and the belt. It is widely used in Aggregate & Cement, Mining, Paper & Forest, Power Generation, Unit & Baggage Handling, etc.
FEATURES
Winged Tail Pulley
Mine duty and quarry duty and heavy duty pulleys provide effective self-cleaning action reducing material build-up. The duty construction reduces the possibility of metal fatigue and enhances the dependability of the pulley. Ideally suited for harsh application and abrasive conditions.
DIAMETER: 6” – 60”(152mm – 1524mm); FACE WIDTH: 12” – 78”(305mm – 1980mm); It is Customizable.
Spiral Wing Pulley
Available in crow spiral wing pulleys are formed by winding flat bar spirally from the center of a wing pulley to the outside ends. This continuous belt contact design eliminates excessive noise and vibration, while still providing a cleaning effect and allowing a path for debris to escape rather than being trapped between the pulley and belt. n or Flat Face.
Diameter: 12" – 60"; FACE WIDTH: 12" – 75"; It is Customizable.
Chevron Wing Pulley
Before the chevron pulley, traditional wing pulley designs were notorious for trapping rocks, gathering fugitive material and bending prematurely.Chevron Wing Pulleys reject and repel any incoming fugitive material, which significantly extends the operating life of your conveyor and many of its components.
DIAMETER: 10” - 42”; FACE WIDTH: 12” - 75”; It can be tail and gravity take-up; It is Customizable.
Herringbone Wing Pulley
Herringbone wing pulley was designed for those applications where conventional wings suffer from excessive material lodging and wing folding. The extreme wing angles of up to 45 degrees, use the rotation of the pulley to eject material out the sides of the pulley rather than recirculating it as a conventional wing often does.
DIAMETER: 12” - 60”; FACE WIDTH: 12” - 78”; This is a precision pulley. It is Customizable.
Belt Conveyor Wing Pulleys Specification
Standard You can get DIN/ AFNOR/ FEM/ ASTM/ CEMA standard wing pulleys from our company.
DIA. 6"-60", 152-1524mm
FACE WIDTH 12"-102", 305-2590mm
Types 1. Mine Duty Wing Pulley,
2. Heavy Duty Wing Pulley,
3. Wing Tail Pulley,
4. Spiral Wing Pulley,
5. Chevron Wing Pulley,
6. Herringbone Wing Pulleys.
Customizable When selecting a conveyor wing pulley, factors such as the type of material being conveyed, belt width, load capacity, and environmental conditions should be considered.
