Product Details
APPLICATION
Sidewall belt conveyor is widely used in:
Ceramic Industry,
Construction industry,
port,
metallurgy,
mining,
electricity,
coal,
casting,
building materials,
food,
Agriculture,
Recycling Industry,
chemical industry material conveying.

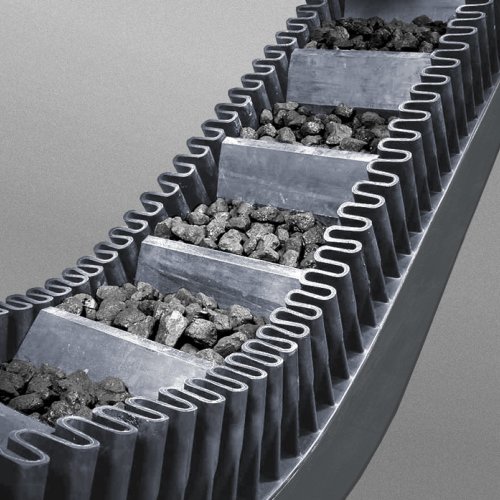

FEATURES
1. Corrugated sidewall conveyor belt Can be used at steeper angles up to 90degree;
2. Ideal for transporting powdery and lumpy materials;
3. Can transport high volumes without any spillage;
4. Corrugated sidewall conveyor belts are adequately rigidity;
5. Do not buckle under compression;
6. Tear and gauging resistance;
7. Enhanced durability;
8. Lower maintenance cost;
DATASHEET
Sidewall Type Data(mm) Min. Pulley Dia. (mm)
N Height=80
Width=44
Base Width=50
Pitch=42 200
Height=100
Width=44
Base Width=50
Pitch=42 250
S Height=120
Width=66
Base Width=75
Pitch=63 315
Height=160
Width=66
Base Width=75
Pitch=63 400
Height=200
Width=66
Base Width=75
Pitch=63 500
Height=240
Width=66
Base Width=75
Pitch=63 630
Height=280
Width=66
Base Width=75
Pitch=63 700
Height=300
Width=66
Base Width=75
Pitch=63 800
ES Height=300
Width=88
Base Width=100
Pitch=84 800
Height=400
Width=88
Base Width=100
Pitch=84 1000
T Cleat Type T75 T110
Height(mm) 75 110
Min. Pulley Dia. (mm) 200 300
TCS Cleat Type TCS280 TCS360
Height(mm) 280 360
Min. Pulley Dia. (mm) 700 700
TC Cleat Type TC110 TC140 TC180 TC220
Height(mm) 110 140 180 220
Min. Pulley Dia. (mm) 350 370 450 500
